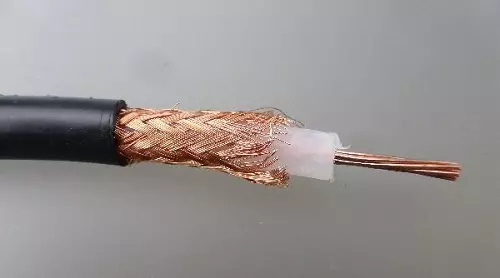

MAGNUM RG213 U MIL-C-17F KOAKSIAALIKAAPELI
- 50 ohminen laadukas vähähäviöinen koaksiaalikaapeli
- HF, VHF ja UHF kaapelivetoihin
- Häviö 4,5dB/100m (50 MHz)
- Häviö 9,9dB/100m (200 MHz)
- Häviö 14,3dB/100m (400 MHz)
- Paksuus n.10mm
-
- Inner conductor Plain copper 7 x 0.75 mm
- Dielectric Low density PE ?7.25 ± 0.18 mm
- Outer conductor (shield) Plain copper 192 x 0.18 mm
- Sheath PVC ?10.3 ± 0.18 mm
- Impedance 50 ± 2 Ohm
- Nominal capacitance 100 pF/m
- Velocity of propagation 66%
- Inner conductor resistance 6 Ohm/Km
- Outer conductor resistance 4,5 Ohm/Km
- Operating temperature range -30 °C - +70 °C
- Copper weight 76.9 Kg/Km
- Cable weight (approx.) 163 Kg/Km
- Screening effectiveness >55 dB
