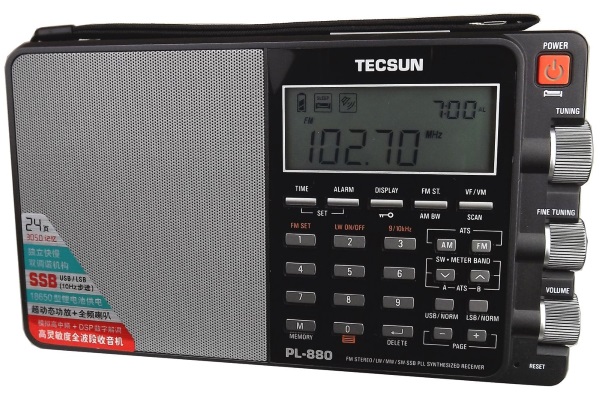

Multiband radio receiver with AM, FM stereo, SW, LW and SSB with excellent performance, 3500 memories, includes rechargeable lithium battery, external antenna socket, backlit LCD display …
Characteristics:
Stereo FM receiver, MW, LW, SW, SSB (LSB and USB)
3,050 memories
Fast or slow fine tuning
External antenna socket
Receive in SSB (LSB and USB)
Alarm clock and alarm (1-120 minutes)
AM band
Lighted LCD display
Antenna with gain
RESET function
Headphone jack
Commercial stereo FM band, received through the headphones
Li-Ion 18650 battery included
Power 5 V.C.C
Frequency Ranges:
- FM: 87-108MHz / 87.5-108MHz / 76-108MHz / 64–108MHz, with tuning steps of: 0.01 / 0.1MHz.
- SW: 711-29999kHz, with tuning steps of 1kHz / 5kHz.
- MW: 522-1620kHz, with tuning steps of 1kHz / 9kHz. 520-1710 kHz, with 1kHz / 10kHz tuning steps
- LW: 100-519 kHz, with tuning steps of 1kHz / 9kHz.
Sensitivity:
- FM (S / N = 30dB): <3µV.
- MW (S / N = 26dB): <1 mV / m.
- LW (S / N = 26dB): <3 mV / m.
- SW (S / N = 26dB): <20µV.
- SSB (S / N = 10dB): <1µV. S / N Ratio: FM:> 65dB.
- MW / LW:> 40dB.
- SW:> 45dB.
Intermediate Frequencies:
A.M:
- 1st F.I .: 55.845MHz.
- 2nd F.I .: 10.7MHz.
- 3rd F.I .: 45kHz.
FM: 128kHz
Audio output: ≥ 450 mW (10% distortion)
Memories: 3500 in total.
Alarm: Only by radio.
Speaker: 4Ω / 3W / 40 mm in diameter.
Headphone jack: 3.5 mm in diameter.
USB connector 5Vdc /> 300 mA.
Dimensions (mm): 192 (width) x 113 (height) x 33 (depth).
Weight: 520 g (bat. Not incl.)
