ANTENNIANALYSAATTORI 1MHz - 6GHz ALUEELLE
- Taajuusalue 1MHz - 6GHz
- RF lähtöteho -10dBm (Max)
- RF interface 0dBm (Max), DC <5V
- Taajuuden tarkkuus ±1ppm
- Taajuusaskellus 10kHz (Min)
- S21 dynaaminen ulottuvuus 65dB (3GHz), 60dB (6GHz)
- S11 dynaaminen ulottuvuus 50dB (3GHz), 40dB (6GHz)
- Näyttö 4.3″” IPS TFT (800×480)
- USB-A ulostulo 5V/1A
- Lataus/Data: USB Type-C
- Akku Li-ion 3.7V, 4500mAh
- Akun toiminta-aika 5h
- Kalibrointipisteet: 801
- Skannauspiste: 101~801
- Jäljet: 4
- Merkinnät: 4
- Kalibrointitulosten varastointikapasiteetti: 12
- Pyyhkäisynopeus: 200 pts/s
- Mitat 125 x 75 x 20 mm
- SMA-naarasliittimillä
KÄYTTÖOHJE (Englanti)
https://www.sysjoint.com/ueditor/php/upload/file/PDF/NanoVNA-F%20V3%20Portable%20Vector%20Network%20Analyzer%20User%20Guide%20V1.0.pdf

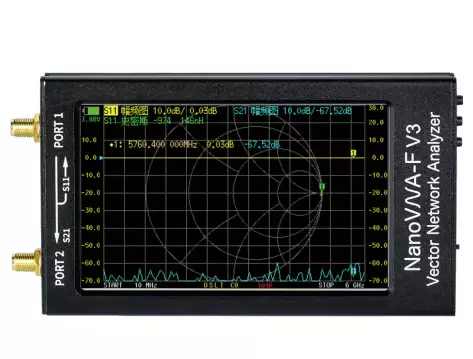

The NanoVNA-F V3 6G is a portable network analyzer engineered for versatility and high performance
covering a wide frequency range from 1MHz to 6GHz across MF, HF, VHF, UHF, and SHF bands.
It is ideal for testing antennas, filters, amplifiers, attenuators, cables, duplexers, and couplers.
The device features a 4.3-inch IPS LCD display for clear visibility in any environment and durable SMA connectors
to ensure stable and reliable connections.
Powered by a 4500mAh Li-ion battery it offers up to 5 hours of operation on a single charge
with convenient USB Type-C charging recommended at 5V/1A.
The NanoVNA-F V3 6G includes Time Domain Reflector (TDR) functionality for accurate cable length measurement and fault detection
and it comes with feature-rich desktop software for advanced analysis and control providing comprehensive capabilities in a compact portable design.
