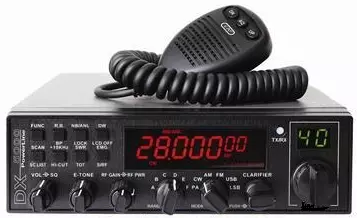

DX-5000 PLUS TIGER NRC AM/FM/SSB HAM 10m RIGI

* Taajuusalue 28-30 MHz
* Modet AM / FM / LSB / USB / CW / PA
* Teho FM 40 W
* Teho AM/CW 12 W
* Teho SSB: 40 W (PEP)
* Taajuus stepit 10 Hz / 100 Hz / 1 kHz / 10 kHz
* RF tehon säätö
* Noise blanker ja ANL häiriön poistot
* UUSI SSB-filtteri NRC parantaa ääntä (Sisään asennettuna)
* Ohjelmoitava Clarifier
* Signaalimittari
* Roger Beep
* Ulostulotehon portaaton säätö (for AM / FM)
* Skannaus
* Kaiku
* Kaksoiskuuntelu (Dual Watch)
* Sisään rakennettu SWR mittari
* SWR suojaus
* Suojaus ylijännitteelle
* 10 kHz hyppy
* Resetointi mahdollisuus
* Aikakatkaisu toiminto
* Korkeiden äänien leikkuri
* Hätä hälyytys
* Näppäinlukko
* Ohjelmoitavissa PC:llä (vaatii erikseen kaapelin ja ohjelman)
* Lisäkaiuttimen liitin 3,5 mm
* CW side tone 300Hz - 3 säädettävää 10 Hz stepeillä
* PA-kaiuttimen liitin
* Power supply 13.8V DC
* Koko 280 x 250 x 60mm
* Paino 2 kg

Uudet tiedot englannilla:

Updates and new (menu) functions are:

* VOX
* CTCSS/DCS codes
* RX compander
* Noise gate
* RX noise reduction (extra PCB inside the radio)
* Microphone type selection: electret or dynamic
* Program cable connector on the backside of the radio (program cable is optional)

Extra ventilation holes on the top and bottom cover

Amateur radio HF mobile transceiver, covers the 28 MHz frequency band reserved to Amateur Radio communication.
Frequency range 28.000-29.700 KHz, adjustable frequency steps (10Hz, 100Hz, 1KHz or 10KHz).
Adjustable TX RF power, 12W max AM/CW, 40W max FM/SSB. Multiple Clarifier operating modes.
Flexible menu functions and PC programming software to fit radio to each operator’s demand.
Large backlighted amber color LCD Display with digital S/RF Meter, shows full 7-digit frequency readout,
plus 2- digit LED display. RF Gain, RF Power, Clarifier, Dual Watch, Scan, TOT, NB/ANL, LOCK, LCD Off, +10KHz, SQ/ASQ functions.
High quality Dynamic microphone with UP/DN frequency and AQ controls.
DC Voltage display function. SWR protection and power supplied voltage protection.

Main Features:

* Frequency range 28.000 - 29.700 MHz HF 10 Meter Band AM/FM/SSB/CW
* Backlighted LCD Display (amber color) with 7-digit frequency readout
* 2-Digit Channel Number readout
* 6 Frequency Bands, 60 Channels (programmable) in each band
* RF Power max 12W AM/CW, 40W FM, 40W SSB
* Digital S/RF Meter, RG Gain control, RF Power control
* Scan/SC List, Dual Watch, EMG, RB, NB/ANL, LOCK, LCD Off, TOT, HI-Cut
* Dynamic Microphone with UP/DOWN/AQ (Auto Squelch) controls
* Quick UP/Quick DOWN frequency selection
* PA (Public Address) circuit
* S/SQL (manual or automatic Squelch control)
* Radio is fully PC programmable (with optional PC Interface Cable)
* Antenna Connector UHF SO239
* Temperature Range -15/+50 °C
* Input Voltage 13.8V (15.9V max / 11.7V min) - 9A max at 40W SSB PEP
* Dimension : cm 28 x 25 x 6 / Weight : kg 2.8
